200w 24v Switching Power Supply 12v 36v 48v 5 In 1 Dimmer Driver For Residential Or Commercial

Name: 200w 24v Switching Power Supply 12v 36v 48v 5 In 1 Dimmer Driver For Residential Or Commercial
Brand: KSPOWER
Price: 38.70 USD

Buy cheap 200w 24v Switching Power Supply 12v 36v 48v 5 In 1 Dimmer Driver For Residential Or Commercial product

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Certification : UL FCC CE ROHS SAA CLASS P etc.

MOQ : 10 pieces

Price : $38.70-63.80/pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Type : MANUAL SWITCH

Product Name : 200W 24V waterproof led driver

Application : LED Strip Light,Pendants, Linears,Cove Lights

Material : Aluminum Case

Warranty : 5 years

Protection : OCP, OVP, SCP, OTP

Efficiency : ≥90%

Power : 200W

Output : 24V

Dimming mode : triac/Phase-out, 0-10V, 1-10V, 10V PWM, Resistance dimming(5 in 1)

Contact Now

200w 24v Switching Power Supply 12v 36v 48v 5 In 1 Dimmer Driver For Residential Or Commercial

Products Description

5 in 1 dimmer switching power supply 12V 36V 48V CV led driver transformer 200W 240W 320W 180W 150W 120W 24V waterproof dimmer

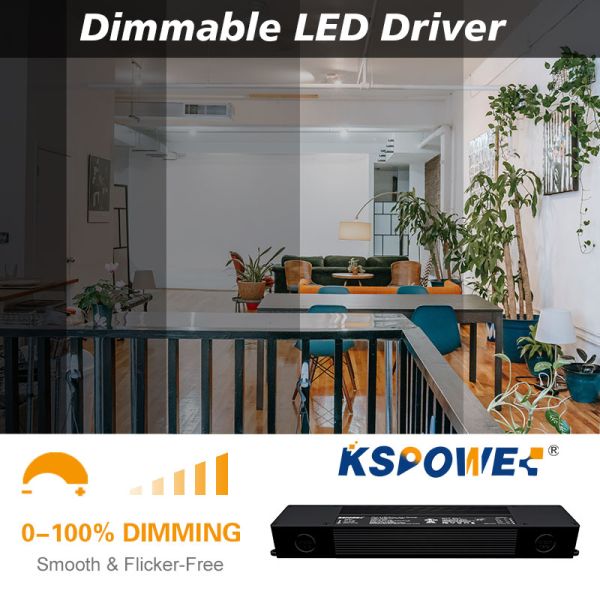

The KSPOWER - HP series 5 in 1 dimmable led driver 40W-320W is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and PFC function. The HP series CV Class 2 dimming LED Driver is dimmable down to 0% with 0-10V / MLV / ELV Lutron dimmers. Featuring 10K frequency PWM output and IP67 waterproof environment protection rated for indoor or outdoor use, the 0-10V/1-10V and triac dimmable led drivers provide 5 years after sale service and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt Optional
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.	KSHP
Output Voltage	12V/24V/36V/48V
Rated Current	0.83A-16.66A
Rated Power	40W-320W
Ripple & Noise (max.)	200mVp-p / 250mVp-p

Show Details

NOW,GET MORE INFORMATIONS OF US !

Company Profile

Working Room

Exhibition

Certifications

Applications

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.

3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
