100V-277V AC to 12V DC Low Voltage Power Supply Transformer Adapter Output 60 80 100 150 240 Watts Waterproof IP67 LED Driver
100V-277V AC to 12V DC Low Voltage Power Supply Transformer Adapter Output 60 80 100 150 240 Watts Waterproof IP67 LED Driver

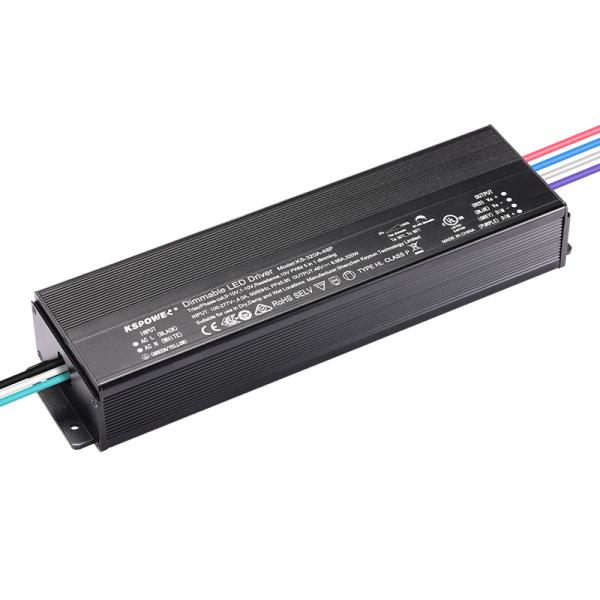

The KSPOWER brand - H series triac dimmable LED driver 240 Watt 12Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage led driver certified to meet UL cUL and CE GS safety approvals. The led dimmable power supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, the H series phase-cut dimmable led power supply provide 5 years warranty and outstanding led dimming peformance.
FEATURES:
− Universal AC input voltage 100-277VAC
− Efficiency up to 90%
− Built-in active PFC function
− Single channel & constant voltage mode and PWM style output
− Protection: OCP, OVP, SCP, OTP
− Limited Power Source
− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved
− Function options:
1. Non-dimmable
2. Triac/Phase-cut Dimmable
3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)
4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)
− Typical lifetime > 50000 hours
− 5 years warranty
− Available with or without integrated Junction Box
− IP65 Rated Enclosure for Indoor and Outdoor Use
− Wiring Compartments with Knock-Outs for Clean and Easy Installation
SPECIFICATION:
| Input Voltage | 100~277V AC 47~63Hz |
| Power Factor | PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load |
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | 20A | 10A | 6.66A | 5A |
| Rated Power | 240W |
| Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p |
| Dimenion | 367*68*41mm(L*W*H) |
DIMMING CONNECT DRAWING:
DIMENSION DRAWING:
PACKAGE
| Package | Piece/Carton | Dimension/Carton | Dimension/Brown Box | Piece Weight | Gross Weight/Carton |
| OEM package | 15pcs | 400 x 400 x 165mm | 382 x 74 x 45mm | 1.4kg | 22kg |
OUR SERVICES
- Our sample delivery time is 3 days.
- Our warranty is 3 years.
- Our product defect rate is 3%.More than 3% of defective products will be refilled.
- OEM&ODM, any your custo mized lightings we can help you to design and put into product.
- Distributoership are offered for your unique design and some our current models,Protection of your sales area, ideas of design and all your private informatio.
- Your inquiry related to our products or prices will be replied in 24hrs.Well-trained and experienced staffs to answer all your enquires in fluent English.
- The delivery time of 100-500PCS is 7 workdays, the delivery time of 500-1000PCS is 10 workdays, the delivery time of 1000-2000PCS is 12 workdays, and the delivery time of 5000PCS is 20 workdays.
Related Products
| |
|  |  |
| Product Name | PWM Phase cut Dimming LED Driver | Waterproof IP 65 67 12V 24V 36V 48V DC Slim LED Driver | strips street tube ceiling dimmable led driver |
| Color | Black ( customizable ) | Black ( customizable ) | Black ( customizable ) |
| Material | Aluminium Case | Aluminium Case | Aluminium Case |
| Functions | Non Dimmable Triac dimmable 4 in 1 dimmable 5 in 1 dimmable | Non Dimmable Triac dimmable 4 in 1 dimmable 5 in 1 dimmable | Non Dimmable Triac dimmable |
| Output voltage | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V |
| Wattage | 40W -320W | 40W -100W | 30W -100W |
